UNDER PANEL

What is Under Panel ?

Under Panel rectifies air flow entering vehicle under engine room.
By adding flat panel under the engine room, under panel eliminates air pile up that occurs at mid to high speed driving. Rectifying air flow under the car adds down force to the vehicle.

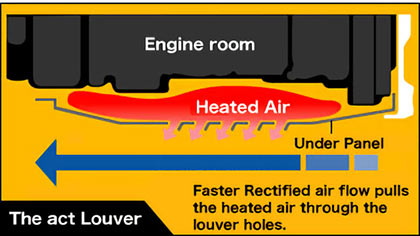

Under Panel also increases air flow speed under the car that pulls the air from the engine room for better cooling efficiency.Thus it stabilizes water and oil temperature.

Features of "CARBING UNDER PANEL".

Placeholder image

Carbing Under Panel uses light weight and high durability (2mm thick) A5052 aluminum.Panel has louvers for the air to escape from Engine room more efficiently that leads to less drag. Low profile design keeps high road clearance. It designed with Oil drain bolt and Oil filter hole for easy oil change service. It designed with Jack-up plate cover(lid) for jacking-up the car without damaging the Carbing Under Panel. Lids are there to prevent dirt to enter the Jack-up plate.

※Carbing Lower Arm bar installed vehicle compatible.

Caution.

Products are designed with brand new car specs. Older vehicles which may have damaged or worn out engine mounts or vehicles with accident may interfere engine part(s) and Carbing Under Panel. Please change engine mounts or modify part of the Carbing Under Panel to prevent the problem.

Under Panel with Side Panel

MITSUBISHI Model Parts No. Code:F
LANCER Evo.[/\ CT9A 509 312 1 製品詳細
LANCER Evo.X CZ4A 509 329 1 製品詳細
LANCER Evo.Wagon CT9A 509 312 1 製品詳細
SUBARU Model Parts No. Code:F
WRX STI VAB 509 525 1 製品詳細
IMPREZA GVB 509 520 1 製品詳細
Alfa Romeo Model Parts No. Code:F
ALFA GT 93720L 509 732 1 製品詳細
ALFA156 2.0 twin spark 932A2 509 713 0 製品詳細
ALFA156 2.5 V6 24V Q system 932A1 discontinued. 製品詳細

Under Panel

TOYOTA Model Type Parts No. Code:F
86 ZN6 509 055 0 製品詳細
86 ZN6 Mission for Normal Panel 506 055 0 製品詳細
86 ZN6 Mission for OKUYAMA Panel 506 055 1 製品詳細
86 ZN6 Rear 508 055 0 製品詳細
MAZDA Model Type Parts No. Code:F
ROADSTER ND5RC Ver.1&2 Set 509 426 0 製品詳細
ROADSTER ND5RC Ver.1 509 426 1 製品詳細
ROADSTER ND5RC Ver.2 509 426 2 製品詳細
MITSUBISHI Model Type Parts No. Code:F
Lancer Evo.VIII〜IX CT9A 509 312 0 製品詳細
Lancer Evo.X CZ4A 509 329 0 製品詳細
Lancer Evo Wagon CT9A 509 312 0 製品詳細
SUBARU Model Type Parts No. Code:F
WRX STI VAB 509 525 0 製品詳細
BRZ ZC6 509 055 0 製品詳細
BRZ ZC6 Mission for Normal Panel 506 055 0 製品詳細
BRZ ZC6 Mission for OKUYAMA Panel 506 055 1 製品詳細
BRZ ZC6 Rear 508 055 1 製品詳細
IMPREZA GDB 509 504 0 製品詳細
IMPREZA GVB/GRB 509 514 0 製品詳細
LEGACY B4
LEGACY TOURING WAGON
BL5,BP5 509 512 0 製品詳細
VOLKSWAGEN Model Type Parts No. Code:F
GOLF X GTI/TSI/R32 1K### 509 723 1 製品詳細
GOLF XI GTI 1KCCZ 509 723 1 製品詳細

Side Panel

MITSUBISHI Model Parts No. Code:F
LANCER Evo.[/\ CT9A 509 312 2 製品詳細
LANCER Evo.X CZ4A 509 329 2 製品詳細
LANCER Evo WAGON CT9A 509 312 2 製品詳細
